AI driven interface for SlicerTMS

Key Investigators

• SangHyuk Kim (BWH & UMass Boston, USA)
• Puxun Tu (BWH & SJTU, USA)
• Steve Pieper (Isomics, USA)
• Lipeng Ning (BWH & HMS, USA)

Project Description

SlicerTMS is a 3DSlicer module for patient-specific transcranial stimulation. It integrates several functions, including neuronavigation, electric field modeling, real-time EEG streaming and recording, and TMS control. These functions involve a complex user interface, and some tasks, such as neuronavigation registration, may need more than one user. To simplify the interface and improve the user experience, we will develop a new version leveraging LLM models and Slicer AI Agent tools. Specifically, we will eliminate LLM hallucinations at the infrastructure level by executing medical software APIs through human-verified Markdown Cookbooks and local Vector RAG technologies. Furthermore, the system establishes a next-generation intelligent environment featuring a self-evolving Auto-Correction engine that tracks and learns directly from clinician adjustment patterns, all while seamlessly supporting the trusted clinical interfaces medical professionals already use.

Objective

• Implement a voice-based interface for neuronavigation registration.
• Improve the data visualization interface using the AI agent, e.g., by switching between visualization methods.
• Simplify the interface with the EEG and TMS devices AI agent.
• Minimize LLM hallucination in SlicerTMS by compiling user intent into strict template-based execution payloads.

Approach and Plan

• Zero-Hallucination RAG System: Modularize verified VTK recipes into Markdown Cookbooks, embed them into a local Vector DB, and inject real-time scene variables for deterministic execution.
• UI and UX Modernization: Integrate high-density clinical data and 2D/3D visualizations into a dynamic spatial layout to overcome Slicer’s legacy UI constraints.
• Architecture Evaluation Benchmark inference accuracy, latency, and medical data privacy between closed-network offline models and cloud-based counterparts.

Progress and Illustrations

• SlicerTMS Navigation workflow automated by integrating Local LLM.
• SlicerTMS Registration feature is controlled by cookbook: RAG router bypassing LLM logic for known tasks. Near zero-latency for defined commands.
• LLM does not write raw Python code. System runs on deterministic medical API execution.

=========================================================================
[ PHASE 1: IMPLEMENTED ] Zero-Hallucination Deterministic Flow
=========================================================================
Concept: Direct route bypasses LLM logic for safe, immediate execution.

[ User Input ] ➔ ( e.g., "Load Patient Data", "Open Registration" )
        ↓
[ RAG Router ]    ━━━ ( Semantic Similarity Calculation )
        ↓
        ┣━━━ [ Match > 0.35 ] ➔ [ Cookbook Execution ] ➔ ( 0s Latency )
        ┃                               ↓
        ┃                       Bypass LLM Logic
        ┃                               ↓
        ┃                     [ Strict JSON Payload ]
        ┃                               ↓
        ┃                ( Safe Medical API Execution )

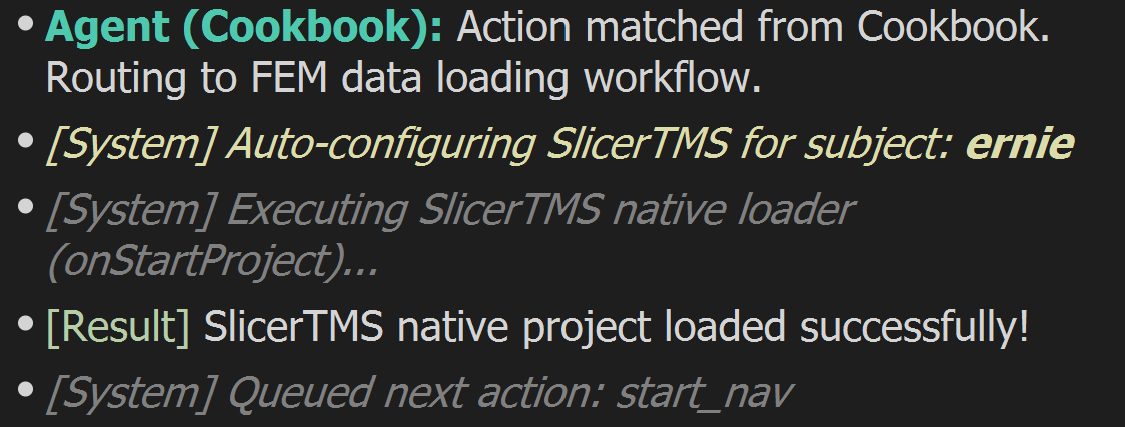

Cookbook Matching

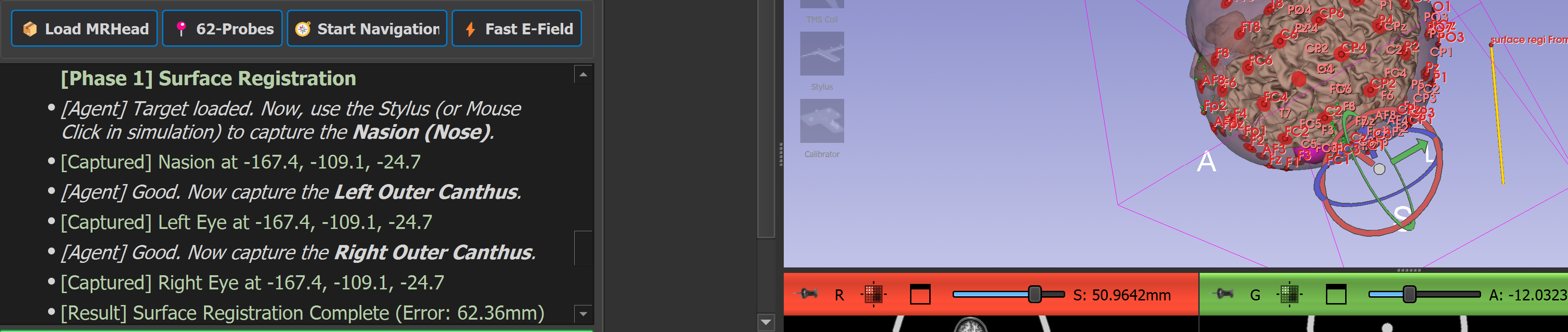

Surface Registration </br>

Next Steps

• AI Agent must understand scenes and coordinates before reasoning (Spatial understanding).
• AI agent should execute active Read-Reason-Action loops. System should auto-correct spatial errors like “F10 is 2mm off”.
• Local LLMs must be evaluated against cloud models like Claude: accuracy vs execution speed for targeting tasks.

[ PHASE 2: FUTURE WORK ] Active Scene Introspection & Reasoning Loop
=========================================================================
Concept: LLM acts as a "Tool User" with bi-directional spatial awareness.

[ Surgeon Input ] ➔ ( e.g., "F10 is off by 2mm, move it down" )
        ↓
[ RAG Router ]    ━━━ ( Semantic Similarity Calculation )
        ↓
        ┗━━━ [ Match < 0.35 ] ➔ [ LLM Deep Reasoning ]
                                        ↓
                         [ Bi-Directional Query Loop ]
                                        ↓
                  1. READ   ➔ Calls GetNodeCoordinate("F10")
                  2. RETURN ⬅ Slicer: {"F10": [x:45.2, y:12.1, z:55.0]}
                  3. REASON ➔ Calculate Offset (Z: 55.0 - 2.0 = 53.0)
                  4. ACTION ➔ Triggers Cookbook: MoveNode("F10", [0,0,-2])

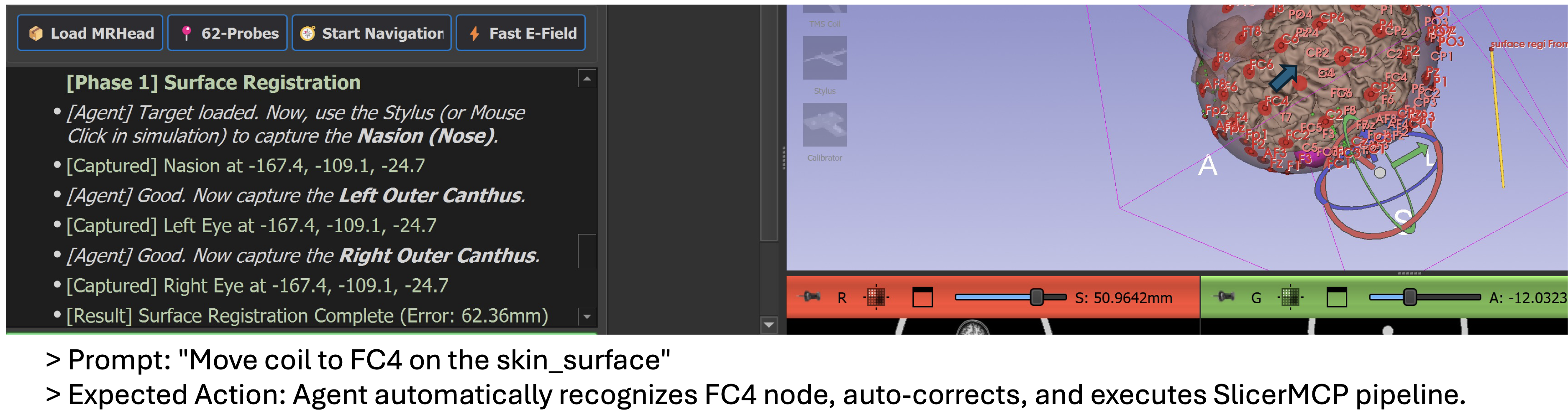

Active AI Agent </br> </br>

Next Steps

• AI Agent must understand scenes and coordinates before reasoning (Spatial understanding).
• AI agent should execute active Read-Reason-Action loops. System should auto-correct spatial errors like “F10 is 2mm off”.
• Local LLMs must be evaluated against cloud models like Claude: accuracy vs execution speed for targeting tasks.

=========================================================================
[ PHASE 2: FUTURE WORK ] Active Scene Introspection & Reasoning Loop
=========================================================================
Concept: LLM acts as a "Tool User" with bi-directional spatial awareness.

[ Surgeon Input ] ➔ ( e.g., "F10 is off by 2mm, move it down" )
        ↓
[ RAG Router ]    ━━━ ( Semantic Similarity Calculation )
        ↓
        ┗━━━ [ Match < 0.35 ] ➔ [ LLM Deep Reasoning ]
                                        ↓
                         [ Bi-Directional Query Loop ]
                                        ↓
                  1. READ   ➔ Calls GetNodeCoordinate("F10")
                  2. RETURN ⬅ Slicer: {"F10": [x:45.2, y:12.1, z:55.0]}
                  3. REASON ➔ Calculate Offset (Z: 55.0 - 2.0 = 53.0)
                  4. ACTION ➔ Triggers Cookbook: MoveNode("F10", [0,0,-2])

Active AI Agent </br>

No response

Background and References

SlicerTMS, Slicer AI Agent, NousNav
